QUBINO Z-Wave 1 Relay

$95.00
Tax included

The QUBINO Single Switch (by GOAP)  is Z-Wave module for switching on or off the electrical device (e.g. light, fan, etc ...). The module can be controlled either through Z-wave network or through the wall switch manually.

Quantity
In Stock

  • 100% Secure Payments 100% Secure Payments
  • Australian Wide Flat Rate Delivery Australian Wide Flat Rate Delivery
  • Fast Response Fast Response

This module is designed to be mounted  behind a traditional wall switch. Module measures power consumption of load and supports connection of digital temperature sensor. It is designed to act as repeater in order to improve range and stability of Z-Wave network.

Supported switches

Module supports mono-stable switches (push button) and bi-stable switches. The module is factory set to operate with bi-stable switches.

Product Details

• Compatible with any Z-Wave Controller.
• Dimensions (W x H x D) 41,8 x 36,8 x 15,4mm
• Power monitoring accuracy P=5-50W, +/-3W; P˃50W, +/-3%;
• Digital temperature sensor range (sensor must be ordered separately) -50 ~ 125°C
• Support for the connection of digital temperature sensor (optional part)
• 2 binary inputs offer the option to connect additional devices such as sensors, switches/push buttons, etc, …


Product Support

Configuring Z-Wave Devices:

Z-Wave devices often have several configurable parameters which you can change using your Vera’s user interface. These parameters can include things such as the length of time a Z-Wave siren remains active for or the type of manual switch connected to a Z-Wave light controller.

Every available configurable parameter is listed in your device’s user manual. In most cases your device’s default parameters will be suitable to your needs however sometimes it may be necessary to adjust them to optimally use your device. A guide to configuring Z-Wave devices with Vera UI7 is available in the Manuals section.

Note!

Do not connect the module to loads exceeding recommended values. Connect the module only in accordance to the  manual and diagrams below. Use only qualified electrician!

Videos / YouTube:

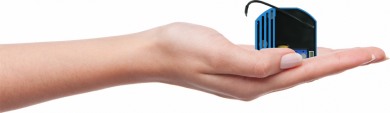

⇒ The smallest Z-Wave module

⇒ GOAP Single switch

Technical Specifications

Product Name
 Flush 1 relay
Powered by
24V DC or 240V AC
Operation Range
30m
Max Load
2300W (230VAC)
Radio frequency
921.42 MHz (AU/NZ Z-Wave)
Power Consumption
0,4W
Operation temperature
-10 -+40 C*
Measured temperature range 0,5o C (within 0o C - 40o C range) (optional sensor)
Temperature measuring accuracy
0,5 C
Housing
ABS
Dimensions (W x H x D)
41,8 x 36,8 x 15,4mm
